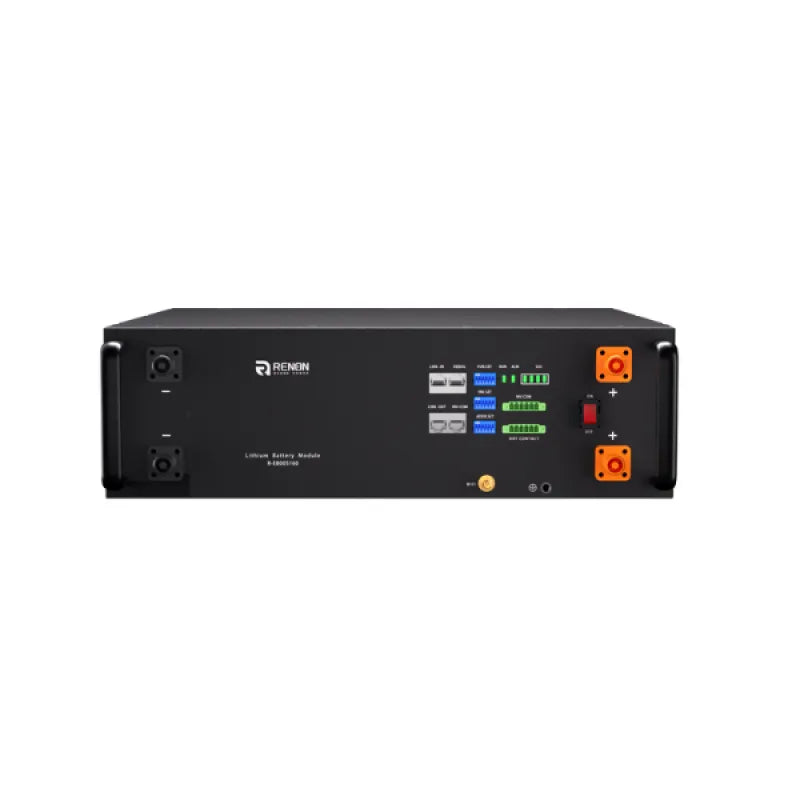

Renon Power EBrick Stackable Battery Module | 5.12kWh | 51.2V
Renon Power EBrick Stackable Battery Module | 5.12kWh | 51.2V
Couldn't load pickup availability
Product Details
The Renon EBrick Series is a low-voltage residential battery storage system designed to store energy from solar panels, generators, or the grid when paired with an inverter. Its rack-mounted design allows for quick and easy installation in virtually any home. With enhanced surge power capacity, the EBrick delivers whole-home backup in a compact footprint. Up to 32 units can be connected in parallel, offering flexible scalability to match a wide range of energy needs. The integrated intelligent EMS platform allows users to monitor performance and customize system behavior for optimized operation.
Features
Safe LiFePO₄ Chemistry
Provides stable performance and enhanced thermal safety with integrated protections against over-voltage, over-current, over-temperature, and short-circuit events.
Long Cycle Life
Offers over 8,000 cycles at 80% depth of discharge (DoD), backed by a 10-year design life, ensuring long-term reliability.
Modular and Scalable
Each 5.12 kWh unit can be paralleled with up to 31 others to reach 158.7 kWh total capacity, allowing flexible system scaling.
Plug-and-Play Design
Front-facing terminals, communication ports, and status indicators simplify installation and maintenance. Standard 19" rack compatibility supports easy stacking or cabinet integration.
Smart Monitoring
Features RS485, CAN, and optional Wi-Fi communication for real-time performance tracking and system diagnostics.
Broad Inverter Compatibility
Easily integrates with popular inverters through selectable DIP switches, supporting brands like Sol-Ark, Victron, SMA, Growatt, and more.
Robust Construction
Compact housing with passive cooling (no fan) and IP20-rated enclosure; operates effectively in a wide temperature range from –20 °C to 50 °C.
Certified for Global Compliance
Complies with major safety and performance standards including UL1973, UL9540A, IEC62619, UN38.3, CE-RED, UKCA, and CEI 0-21.
